애플리케이션 배포 – Docker Container

• 애플리케이션 배포 – Docker Container
  • Running Microservices in Local
  • Create Bridge Network
  • Run RabbitMQ
  • Create Config Server Docker Image
  • Eureka Discovery
    • Build Eureka Discovery Docker Image
    • Run Eureka Discovery
  • ApiGateway Service
    • Build ApiGateway Service Docker Image
    • Run ApiGateway Service
  • Build, Run MariaDB
  • Kafka Server
    • Run Kafka Server – 1)
    • Run Kafka Server – 2)
  • Run Zipkin
  • Run Prometheus + Grafana
  • Build, Run Users Microservice
  • Build, Run Orders Microservice
  • Build, Run Catalogs Microservice
  • Run Microservices

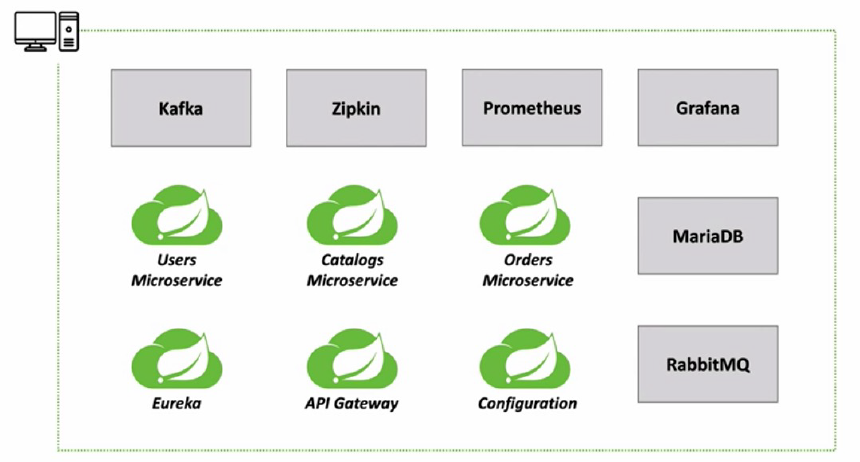

Running Microservices in Local

•

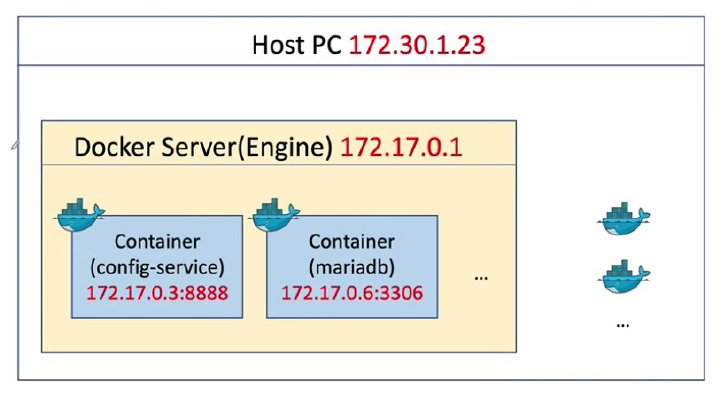

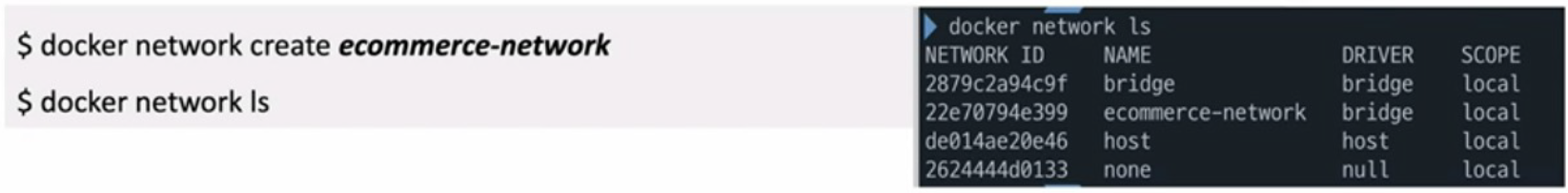

Create Bridge Network

• Bridge network
  • $ docker network create –driver bridge [브릿지 이름]
  • 호스트와 별도의 가상의 네트워크를 만들고 가상의 네트워크에서 컨테이너들을 배치해 놓고 사용
  • $ docker network create –gateway 172.10.01 –subnet 172.18.0.0/16 ecommerce-network
    • gateway, subnet 지정
  • $ docker network inspect ecommerce-network
    • 네트워크 상세 정보 조회
• Host network
  • 네트워크를 호스트로 설정하면 호스트의 네트워크 환경을 그대로 사용
  • 포트 포워딩 없이 내부 어플리케이션 사용
• None network
  • 네트워크를 사용하지 않는다
  • Io 네트워크만 사용, 외부와 단절
•
•
  • 같은 네트워크 상에서는 컨테이너 이름으로 서로 호출이 가능하다

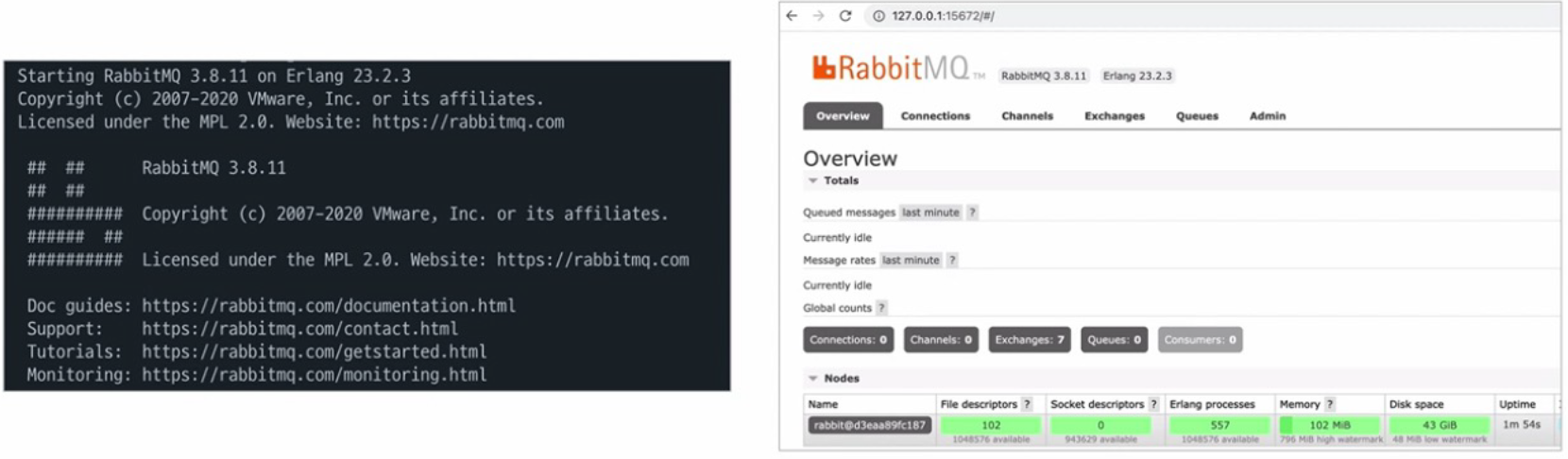

Run RabbitMQ

• docker run -d –name rabbitmq –network ecommerce-network \ -p 15672:15672 -p 5672:5672 -p 15671:15671 -p 5671:1671 -p 4369:4369
  -e RABBITMQ_DEFAULT_USER=guest
  -e RABBITMQ_DEFAULT_PASS=guest rabbitmq:management
•

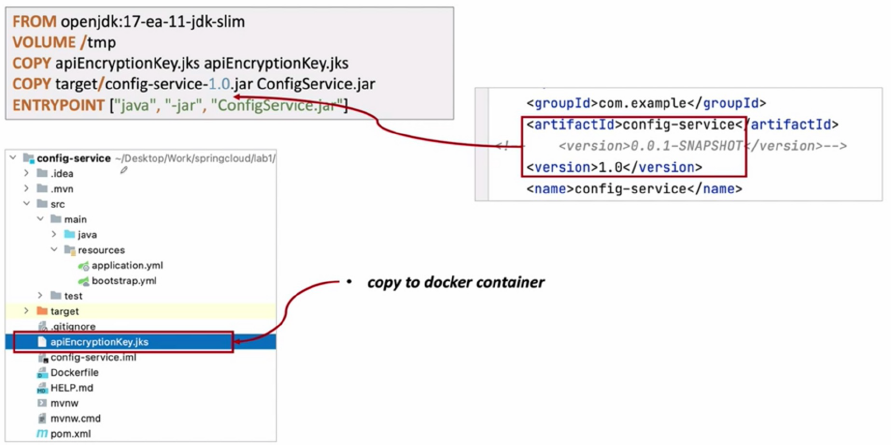

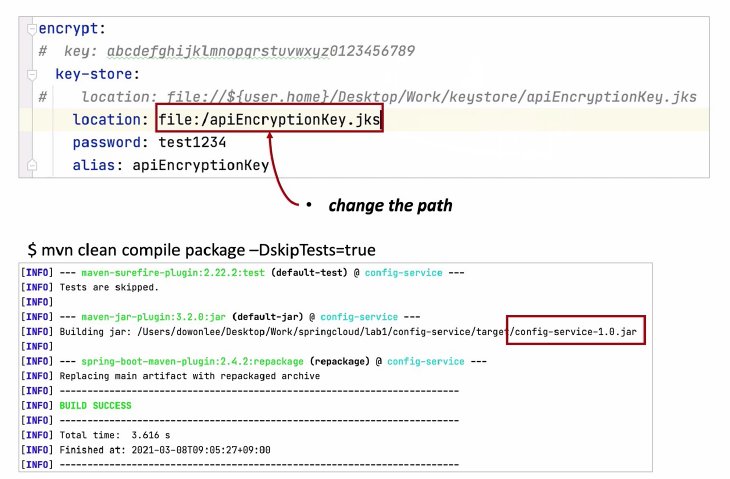

Create Config Server Docker Image

•
•

Eureka Discovery

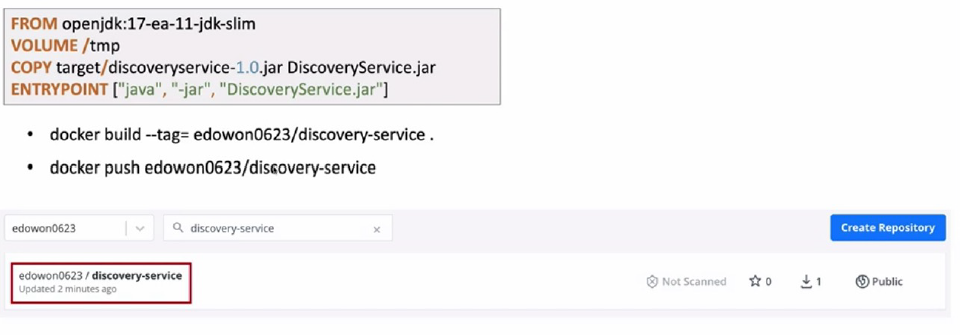

Build Eureka Discovery Docker Image

•

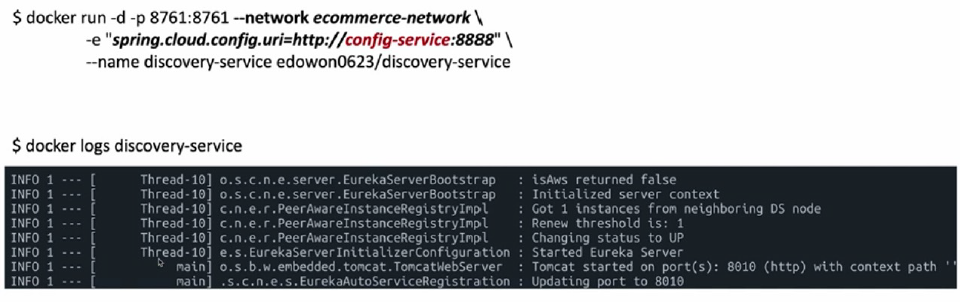

Run Eureka Discovery

•

ApiGateway Service

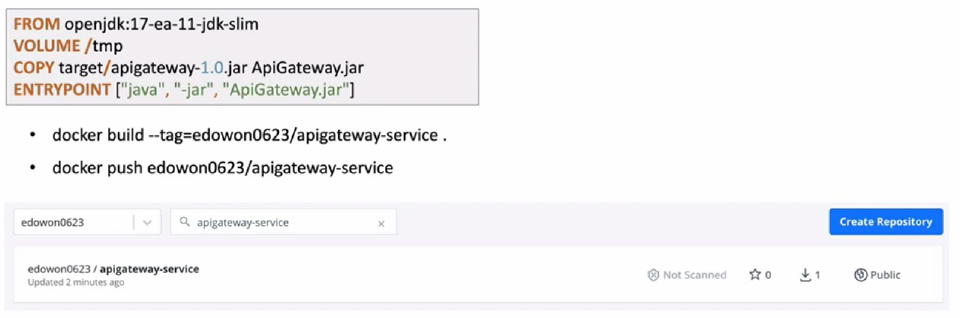

Build ApiGateway Service Docker Image

•

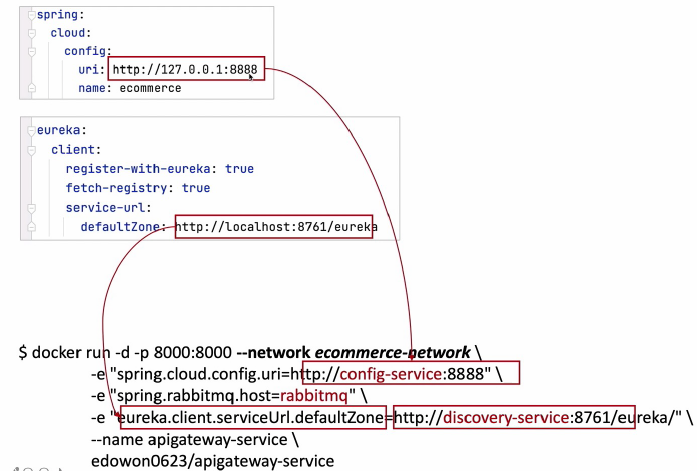

Run ApiGateway Service

•

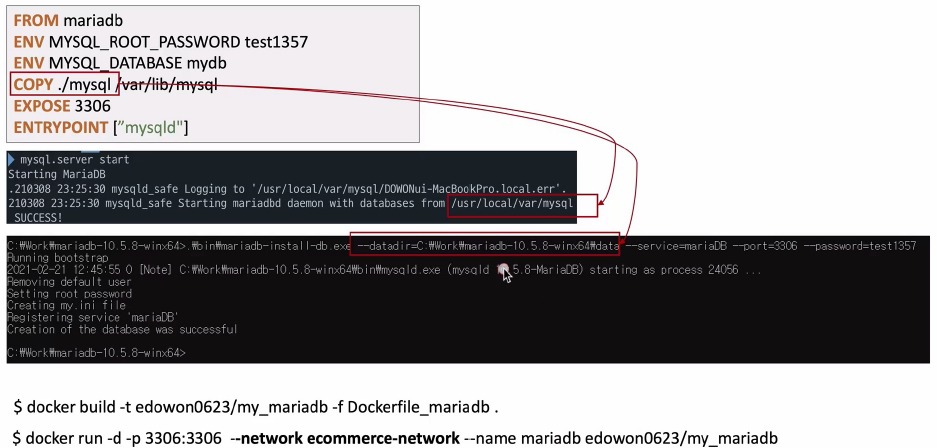

Build, Run MariaDB

•

Kafka Server

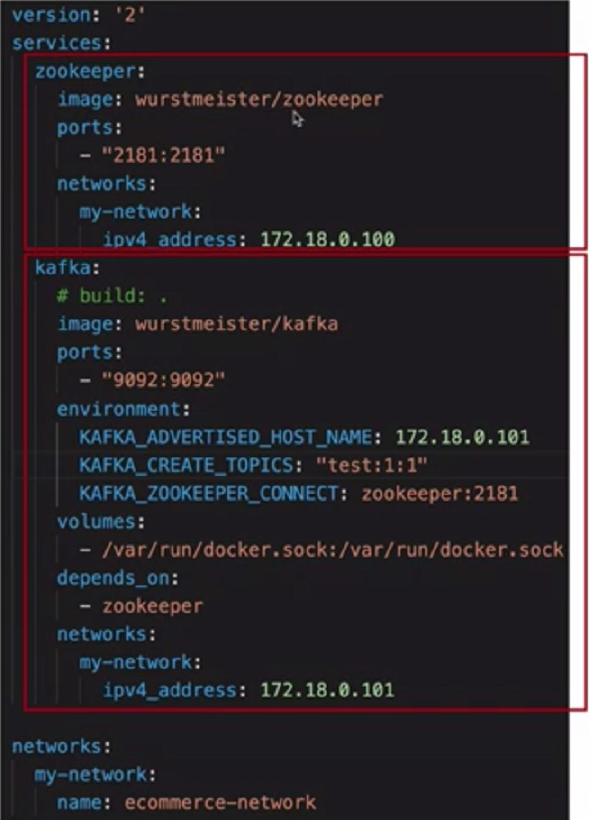

Run Kafka Server – 1)

•
• Zookeeper + Kafka Standalone
  • docker-compose로 실행
  • git clone https://github.com/wurstmeister/kafka-docker
  • docker-compose-single-broker.yml 수정
• $ docker-compose -f docker-compose-single-broker.yml up -d

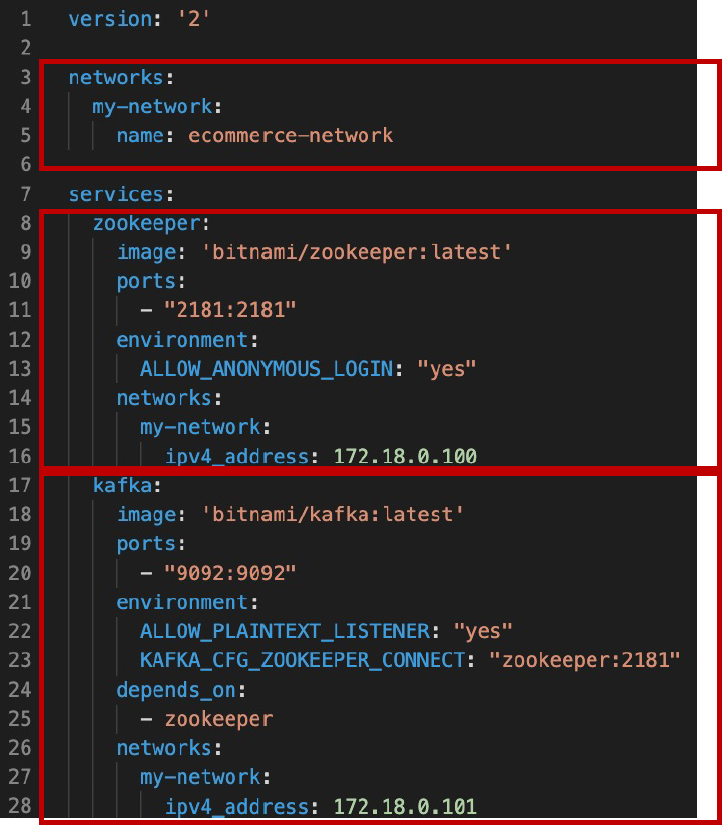

Run Kafka Server – 2)

•
• bitnami/kafka
  • https://hub.docker.com/r/bitnami/kafka

Run Zipkin

• https://zipkin.io/pages/quickstart
• $ doker run -d -p 9411:9411
  –network ecommerce-network
  –name zipkin
  openzipkin/zipkin

Run Prometheus + Grafana

• Prometheus
  • https://prometheus.io/docs/prometheus/latest/installation/#using-docker
  • $ docker run -d -p 9090:9090
    –network ecommerce-network
    –name prometheus
    -v /path/to/prometheus.yml:/etc/prometheus/prometheus.yml
    prom/prometheus
• Grafana
  • https://grafana.com/grafana/download?platform=docker
  • $ docker run -d -p 3000:3000
    –network ecommerce-network
    –name grafana
    grafana/grafana

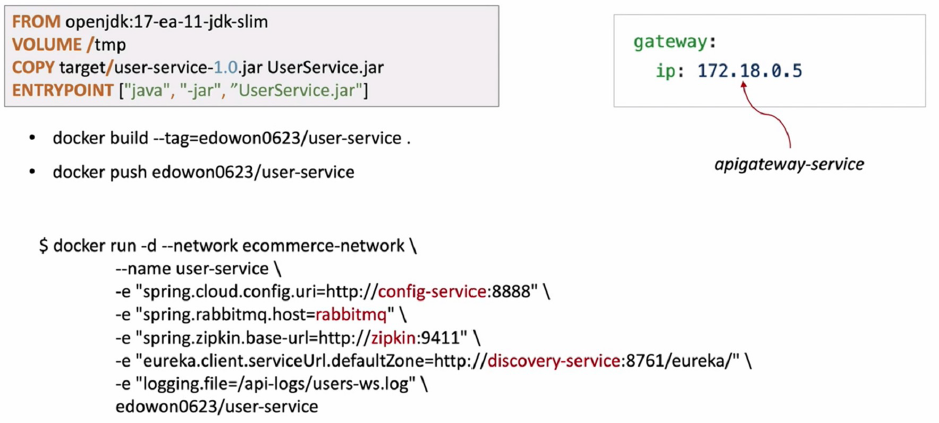

Build, Run Users Microservice

•

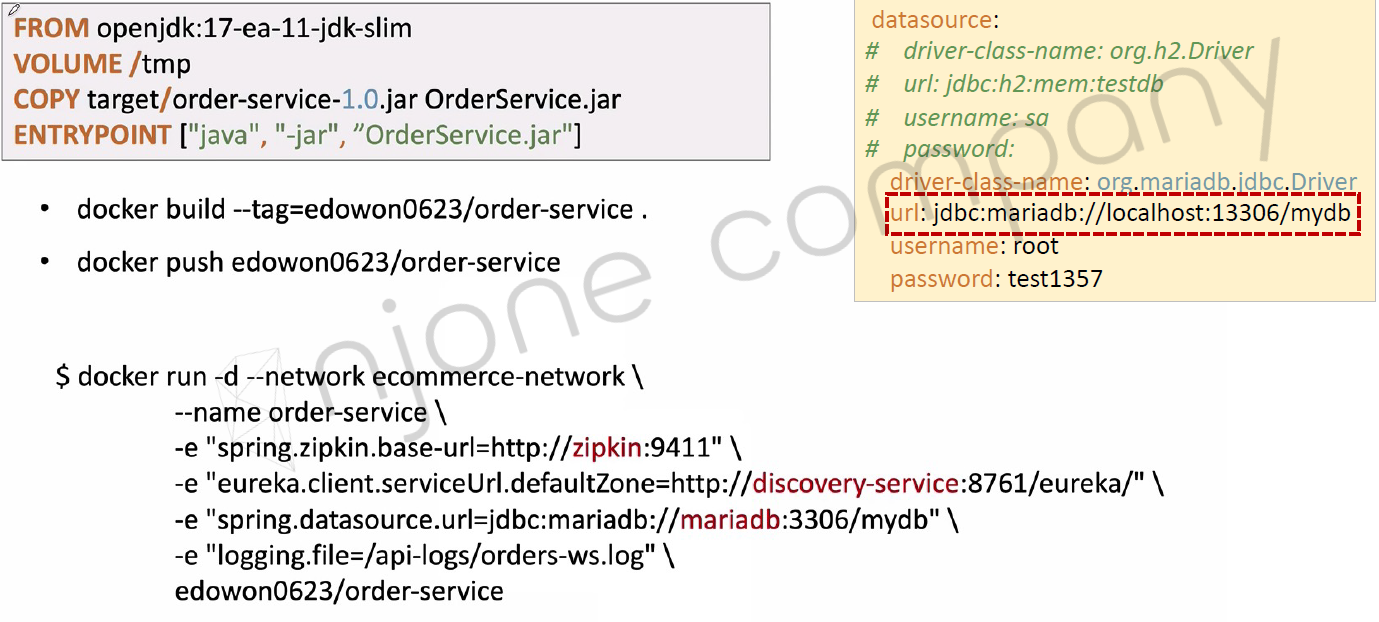

Build, Run Orders Microservice

•
•

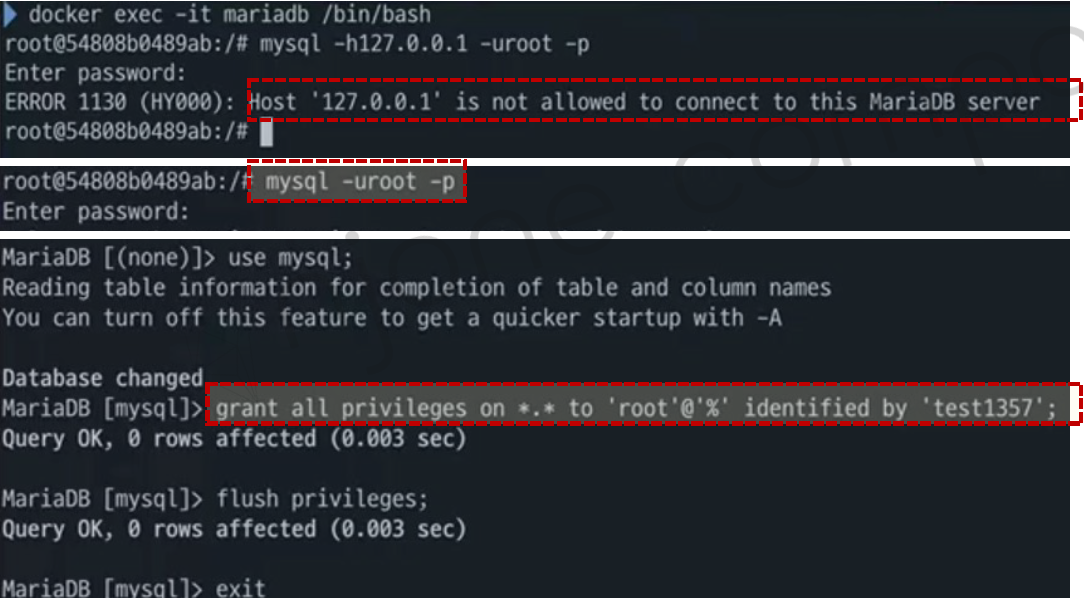

• mariadb 접속 시 오류 발생시
  •

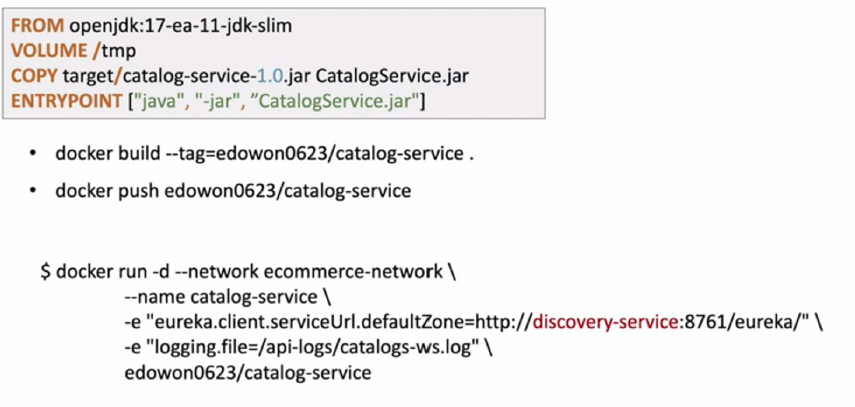

Build, Run Catalogs Microservice

•
•

Run Microservices

•
•
•
•
